What Is a Duct Pressure Class?
A duct pressure class is the numerical rating used to tell the fabricator what pressure a section of ductwork must be constructed to withstand. It is tied to the pressure condition expected in that section rather than simply to airflow velocity.
Current federal HVAC criteria show why this needs to be treated as a drawing-level requirement. The U.S. Department of Defense's UFS 3-410-01, published in July 2025 and updated in January 2026, calls for duct pressure, seal, leakage, and test-pressure classifications to be identified for supply, return, exhaust, and outdoor-air ductwork associated with air-moving equipment.
Pressure is commonly expressed in inches of water gauge (in. w.g.) on U.S. mechanical drawings. A 2 in. w.g. class does not mean every point in the duct operates continuously at exactly 2 in. w.g. It identifies the construction class assigned to that section.
For a mechanical takeoff, that distinction matters. A duct run can be measured correctly and still be priced incorrectly when the pressure-class note attached to it is missed.
What Are the Main Pressure Classes for HVAC Ductwork?
The SMACNA pressure-class system uses a numerical ladder instead of relying only on a low, medium, or high pressure duct label.
The commonly used classes are:
SMACNA's current HVAC Duct Construction App covers rectangular duct applications from negative through positive 10-inch water gauge and generates construction options using methods from its HVAC Duct Construction Standard.
How HVAC Duct Pressure Classes Are Applied
Static pressure changes as air moves through fans, dampers, and VAV boxes, so a single HVAC system can carry several SMACNA pressure classes—from 1/2 in. w.g. on light return sections up to 10 in. w.g. on high-pressure mains. Each class drives the sheet metal construction, reinforcement, sealing, and leakage-testing requirements for that duct run. The breakdown below shows how the common HVAC ductwork pressure classes are applied in practice.
1/2-inch, 1-inch, and 2-inch duct classes
These sit at the lower end of the pressure range and are common across many comfort-air systems and downstream duct sections.
The 2025 DoD HVAC criteria provide a useful example of how classes can change within one system. Its sample construction and leakage schedule assign a 2 in. w.g. class to the supply side of a constant-volume rooftop unit and 1 in. w.g. to the return. An AHU with an economizer is also shown at 2 in. w.g. on the supply side, while return, exhaust, and outdoor-air ductwork are listed at 1 in. w.g.
Those values are examples, not defaults for every project. The actual drawings, specifications, equipment pressures, and design schedule control.
3-inch and 4-inch duct classes
Three- and four-inch classes come into play where ductwork has to withstand higher static pressure.

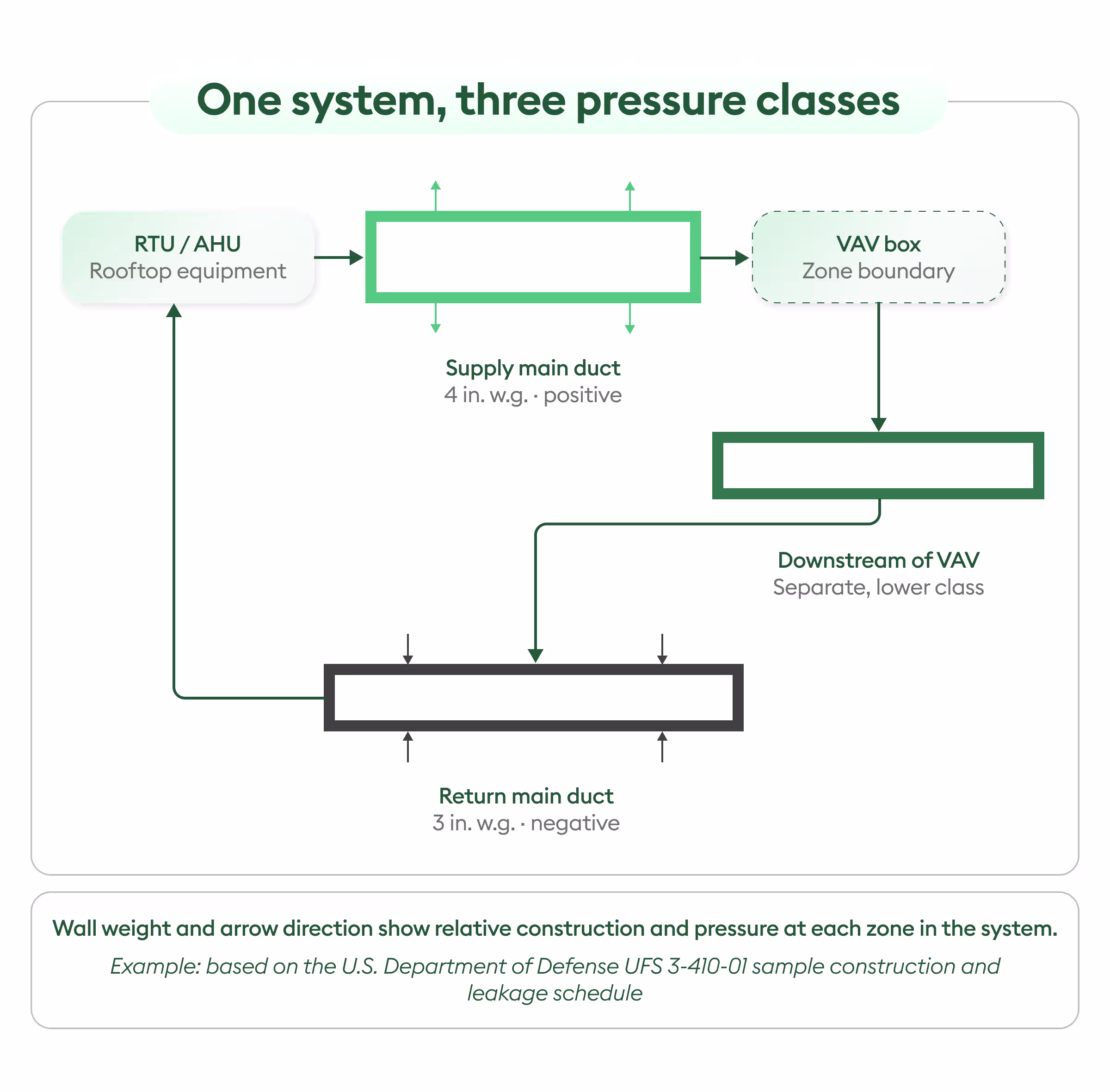

In the same DoD example, a packaged VAV system carries a 4 in. w.g. supply classification and a 3 in. w.g. return classification.
For a ductwork takeoff, that change needs to be captured before pricing. A higher-pressure section may require different sheet construction, reinforcement, connections, sealing, or testing than a lower-pressure section of the same system.
6-inch and 10-inch duct classes
Six- and ten-inch classes sit at the upper end of the SMACNA HVAC construction range. SMACNA's current construction tools cover applications through positive and negative 10 in. w.g.
At these pressures, estimators need to review reinforcement, transverse joints, supports, access components, sheet construction, and leakage requirements closely.
One missed pressure-zone change can affect a large length of ductwork, especially on systems with long mains or multiple downstream branches.
Low, Medium, and High Pressure Ductwork
Low pressure, medium pressure, and high pressure are still common terms in HVAC conversations, but they are not precise enough for fabrication.
The phrase low medium high pressure duct classification is shorthand, and the boundaries are not always used consistently across project specifications. A numerical duct pressure class gives the estimator and fabricator a clearer construction requirement.
This becomes especially important in variable air volume systems, where pressure can change across terminal units. Duct upstream of a VAV box may carry one class, while the downstream duct carries another.
For static pressure ductwork, each class shown on the drawings should therefore be followed through the system rather than assigning one assumption to every run.
Positive vs. Negative Duct Pressure
Supply ductwork downstream of a fan normally operates under positive pressure, with pressure acting outward on the duct walls. Return and exhaust ductwork can operate under negative pressure.
The distinction affects both construction and leakage.
- Positive pressure: Air is pushed outward against the duct walls and can escape through poorly sealed joints or seams.
- Negative pressure: The pressure condition pulls inward on the duct and can draw surrounding air through openings.
- System location: Pressure direction can change depending on where the duct sits in relation to fans and equipment.
Current DoD criteria account for negative-pressure systems in their leakage-testing requirements. The July 2025 UFS notes that testing may be performed at positive pressure for negative-pressure systems, while pressure, sealing, leakage, and test classifications are still assigned by system.
During an HVAC takeoff, positive or negative pressure should stay tied to the duct section through review and pricing rather than being treated as a general system note.
How Pressure Class Affects Duct Gauge and Reinforcement
A duct gauge by pressure class chart looks convenient, but pressure alone is not enough to select sheet metal construction.
SMACNA's current construction resources account for multiple factors, including duct dimensions, transverse connections, joint lengths, and reinforcement conditions. That is why the SMACNA duct construction standards work more like a construction framework than a simple pressure-to-gauge lookup.
The main variables to check are:
- Duct dimensions: A large rectangular panel may need different construction than a smaller duct carrying the same pressure.
- Duct shape: Rectangular, round, and flat-oval duct do not follow identical construction details.
- Pressure class: Higher positive or negative pressure increases the load the assembly has to withstand.
- Joint construction: Connection type and spacing affect the available fabrication options.
- Reinforcement: Larger ducts or higher pressures can require additional reinforcement.
- Material: Galvanized steel, aluminum, and stainless steel bring different fabrication considerations.
Duct type adds another variable. Flexible and rigid ductwork behave differently under airflow and installation conditions, so the material and application need to stay attached to the quantity being priced.
This is also why an HVAC quantity takeoff should preserve more than length, width, and height. The measured quantity may be right while the construction assumption attached to it is wrong.
What Is the Difference Between Pressure Class and Duct Sealing Class?
Pressure class and sealing class address different parts of duct construction.
The pressure class covers the pressure the duct assembly is built to handle. Sealing requirements control air leakage through seams, joints, penetrations, and connections.
The term duct sealing class (A/B/C) still appears in project specifications and industry terminology, but the required sealing scope needs to come from the applicable project documents.
For example, the 2025 California Building Energy Efficiency Standards, which apply to permit applications from January 1, 2026, require ductwork and plenums with pressure-class ratings to be constructed to Seal Class A.
The DoD UFS example also assigns Seal Class A throughout its sample ductwork construction and leakage-testing schedule.
Those examples show how sealing can be tied to pressure-class documentation, but they should not be treated as a blanket rule for every project.
When Is Duct Leakage Testing Required?
Duct leakage testing checks whether installed ductwork stays within the allowable leakage limit at a specified test pressure.
There is no single testing threshold that applies to every project or jurisdiction.
Washington State's 2026 energy-code rulemaking, for example, requires leak testing for ducts and plenums designed for static pressures of 3 in. w.g. or greater, along with specified ductwork outside the building thermal envelope. Testing is performed using the average operating pressure or design duct construction pressure class in accordance with the SMACNA leakage-testing method.
SMACNA's current Air Duct Leakage App uses methodology from its HVAC Air Duct Leakage Manual to calculate allowable leakage and determine the pass/fail point for specified tests.
Before carrying out duct leakage testing in an estimate, check:
- Which sections are included: The specification may call for all new ductwork, higher-pressure sections, outdoor ductwork, or another defined portion.
- Test pressure: Use the design and testing requirements rather than a rule of thumb.
- Leakage class: Rectangular and round or oval ducts may have different leakage criteria.
- Testing responsibility: The mechanical contractor, TAB contractor, commissioning provider, or another party may own the scope.
- Retesting: Failed tests can mean additional sealing, troubleshooting, and another round of testing.
Testing is easy to miss when the estimator is focused only on the measured duct quantity. Once the duct is installed and access becomes limited, that missed scope gets harder and more expensive to recover.
What Estimators Should Capture in a Ductwork Takeoff
Pressure class can appear in a general note, schedule, legend, equipment detail, or specification instead of beside every run. That is why knowing how to read mechanical/HVAC drawings for takeoff matters before quantities are carried into pricing.
A good ductwork takeoff needs to preserve enough information for fabrication and estimating, not just dimensions.
Before quantities move into the estimate, check:
- Pressure-class designations and where they change
- Positive or negative pressure
- Duct material and shape
- Duct dimensions
- Reinforcement and joint requirements
- Sealing requirements
- Leakage class and duct leakage testing scope
- Insulation or liner requirements
- Fans, VAV boxes, and other equipment that separate pressure zones

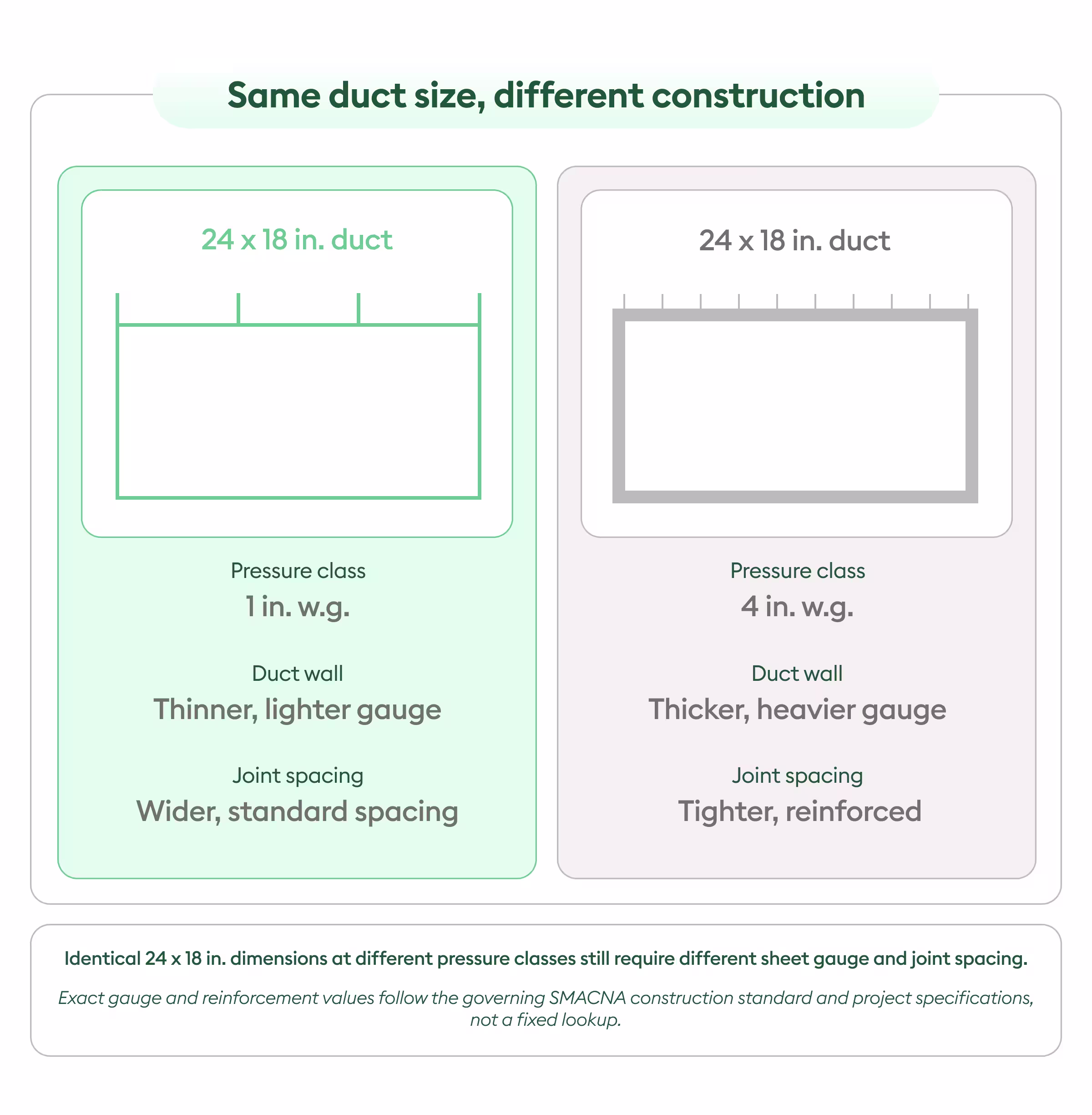

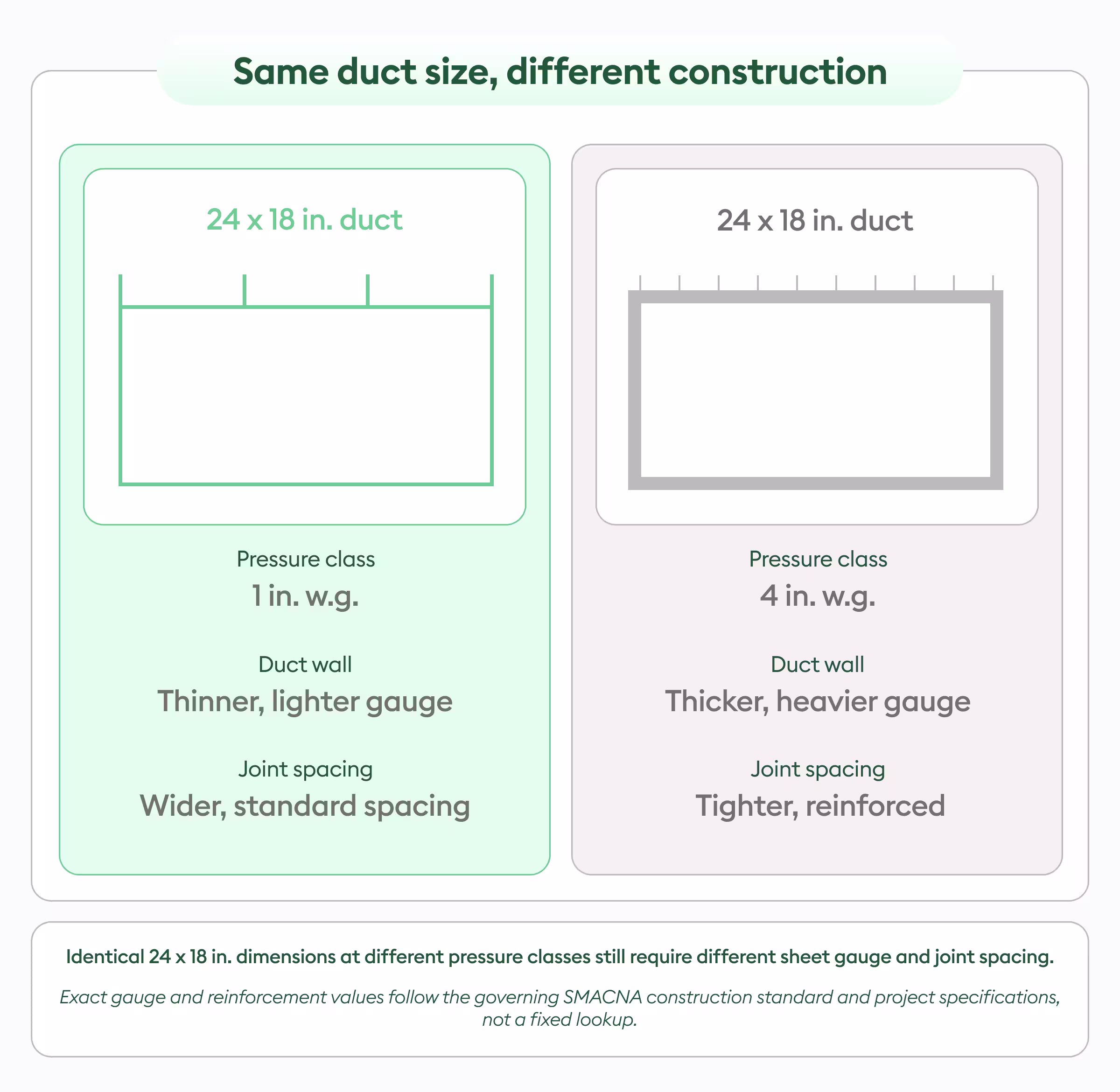

A measured 24 x 18 duct run, for example, is not yet a complete pricing item. Material, pressure class, insulation, sealing, and fabrication requirements still affect what that run costs.
The same principle applies across a full mechanical quantity takeoff. Duct, fittings, dampers, equipment, insulation, supports, and specification-driven scope all need to remain connected to the part of the system they came from.
For teams working through a high volume of plans, HVAC takeoff software can reduce the manual work involved in measuring duct runs and counting fittings. Beam AI supports AI HVAC takeoff workflows by extracting HVAC quantities from uploaded drawings, giving estimators a structured quantity set to review against specifications, schedules, and pressure-class requirements.
Automation can speed up the measurement stage. Pressure class still requires a proper drawing and specification review.
In Closing
Pressure class may look like a small notation on a mechanical drawing, but it can change how an entire duct section is fabricated, sealed, reinforced, tested, and priced.
The standard pressure classes for HVAC ductwork run from 1/2 through 10 in. w.g. Duct size, shape, pressure direction, reinforcement, joints, sealing, and leakage requirements then determine what that construction actually looks like.
For estimators, the safest approach is to identify pressure zones during the HVAC takeoff and carry those designations into pricing. That keeps higher-pressure mains, downstream branches, return systems, and tested duct sections from being grouped under one construction assumption.
