What Are HVAC Symbols?
HVAC symbols are graphical representations used on mechanical drawings to identify HVAC equipment, ductwork, air distribution devices, dampers, controls and other components.
They reduce the amount of text required on a drawing and allow contractors, engineers, estimators, and installers to understand system layouts quickly.
However, the important rule to remember here is HVAC symbols are not universally identical across every project. Engineers and design firms may use different graphical conventions for the same component. The project legend therefore acts as the final authority for interpreting the symbols on that particular drawing set.
For an estimator, this matters because misreading one symbol can affect more than a single count. A missed damper, diffuser, duct transition or branch connection can change material quantities, labor requirements and the final bid.
Start With the HVAC Legend
Before tracing ductwork or counting air terminals, locate the mechanical legend.
The legend typically explains:
- Duct and airflow symbols
- Equipment symbols
- Diffusers and grilles
- Damper symbols
- Piping symbols
- Controls and sensors
- Abbreviations
- Line types
- Riser conventions
- Existing and demolition symbols
- Equipment and detail tags
You may find the main legend on the mechanical cover or general notes sheet while individual plan sheets may include abbreviated legends for convenience. Do not assume that a familiar symbol has the same meaning on every project. A symbol that represents a particular damper or terminal on one set may be drawn differently on another.
Common HVAC Drawing Symbols for Airflow
One of the first things to identify on an HVAC plan is what type of air is moving through each duct.
Common abbreviations include:
Supply Air Symbols
Supply air represents conditioned air traveling from equipment toward occupied spaces.
On many drawings, supply ductwork is identified using SA, arrows, or a project-specific supply-air symbol, with a diffuser, register, or grille shown at the end of the branch.
Some HVAC symbol conventions use an X inside a square or circular shape to identify supply air. Other projects may use different symbols, which is why the legend should always be checked first.
Return Air Symbols
Return air moves from the occupied space back toward the HVAC equipment.
Return air may be identified as RA, with arrows showing airflow toward the return grille or duct. A diagonal line or other graphical marking may be used to differentiate return air from supply air.
Exhaust Air Symbols
Exhaust air removes unwanted air from areas such as restrooms, kitchens, janitor rooms or other spaces that require dedicated ventilation.
Look for EA, exhaust grilles, directional arrows, and duct routes leading toward an exhaust fan or discharge point.
Outside Air Symbols
Outside air is generally identified as OA and represents outdoor air entering the HVAC system. It may connect to an air-handling unit, rooftop unit, dedicated outdoor air system, or another ventilation component.
Tracing OA is particularly useful when reviewing ventilation scope because it shows where outdoor air enters the system rather than simply following the main supply route.
How to Read Duct Symbols
Duct symbols show how air moves through the building and how different sections of the system connect.
Single-Line and Double-Line Ductwork
Ductwork may be represented using single-line or double-line conventions depending on the drawing scale and level of detail.
Double lines can show the physical boundaries of a duct, while single-line representations may be used for simplified layouts.
Duct sizes are typically noted along the run. Rectangular duct may be shown as width × height, while round duct is generally identified by diameter.
For estimating, the size callout is only part of the information you need. Material, gauge, pressure class, insulation, liner, sealing requirements, and fittings may be specified elsewhere.
Flexible Duct Symbols
Flexible duct is often represented by a squiggly or irregular line. A flex duct commonly connects a branch duct to an air terminal such as a diffuser or grille. During a takeoff, do not confuse the flex symbol with a conventional rigid duct run.
The project specifications may also establish limits for flex duct length, installation requirements, insulation, and connections.
Lined Duct Symbols
Internally lined duct may be shown using additional dashed or parallel lines within the duct representation.
The lining can serve acoustic or thermal purposes, depending on the application. Because liner affects material and installation requirements, estimators should verify the applicable specification rather than assuming all ductwork has the same construction.
Duct Riser Symbols
Riser symbols indicate ductwork moving vertically between floors.
A solid or dashed line may indicate whether a duct is rising or dropping, depending on the drawing convention. You may also see arrows or labels such as R for rise and D for drop.
Risers are particularly important on multi-story projects because a single vertical route can serve multiple floors. Always cross-reference riser diagrams, sections and floor plans before quantifying these runs.
Understanding Damper Symbols
Symbols on the duct are used to show devices mounted in the duct to help regulate air flow or provide fire and smoke protection. Dampers, depending on the type, control how much air can flow through a duct, or can stop air from flowing when a fire occurs or can contain smoke between rooms.
Volume Damper (VD)
A volume damper regulates airflow within a duct system.
It is commonly shown as a line or blade arrangement crossing the duct, sometimes with a small handle or actuator indication.
For estimators, volume dampers separate components that need to be counted along with the ductwork. They are often positioned near branch connections or other locations where airflow needs to be balanced.
Fire Damper (FD)
A fire damper is installed where ductwork passes through certain fire-rated assemblies.
On mechanical plans, it may appear as a marking across the duct, a solid geometric symbol, or an FD tag.
Nevertheless, the exact graphical representation can vary, so use the project legend and specifications to confirm the symbol.
Fire dampers are particularly important during estimating because their locations are often tied to rated walls, shafts, floors, and other building assemblies.
Smoke Damper (SD)
Smoke dampers are used to control smoke movement through the HVAC system.
They may be identified by SD, an actuator indication, or another project-specific symbol.
Some systems use combination fire/smoke dampers where both functions are required. Do not assume that every damper at a rated penetration is a standard fire damper. Check the schedule, legend, specifications, and details.
Automatic Control Dampers
Automatic control dampers use an actuator to open, close, or modulate airflow based on system controls. These may appear similar to manual dampers at a quick glance, but actuator or control indications help distinguish them.
Additionally, the associated controls can be shown on separate control diagrams, so the plan symbol should be cross-referenced rather than interpreted in isolation.
Understanding Air Distribution Symbols
Air distribution components are the visible points where air enters or leaves a space.
Common components include:
- Ceiling diffusers
- Linear slot diffusers
- Supply registers
- Return grilles
- Exhaust grilles
- Transfer grilles
Arrows are especially useful here. For a supply diffuser, arrows generally point away from the terminal to show where conditioned air is being discharged. But for a return or exhaust grille, arrows generally point toward the grille because air is being pulled into the opening.
Diffusers may also use arrows to indicate one-way, two-way, three-way, or four-way air distribution.
Each terminal may have a tag that connects it to an air distribution schedule. That schedule can provide the type, size, airflow, neck dimensions, finish, and other specifications needed for estimating.
Other HVAC Symbols You Should Recognize
HVAC plans contain more than duct and damper symbols. Several additional symbols help you identify duct connections, changes in direction, air terminals, and other components within the system.
Ductwork Fittings and Connections

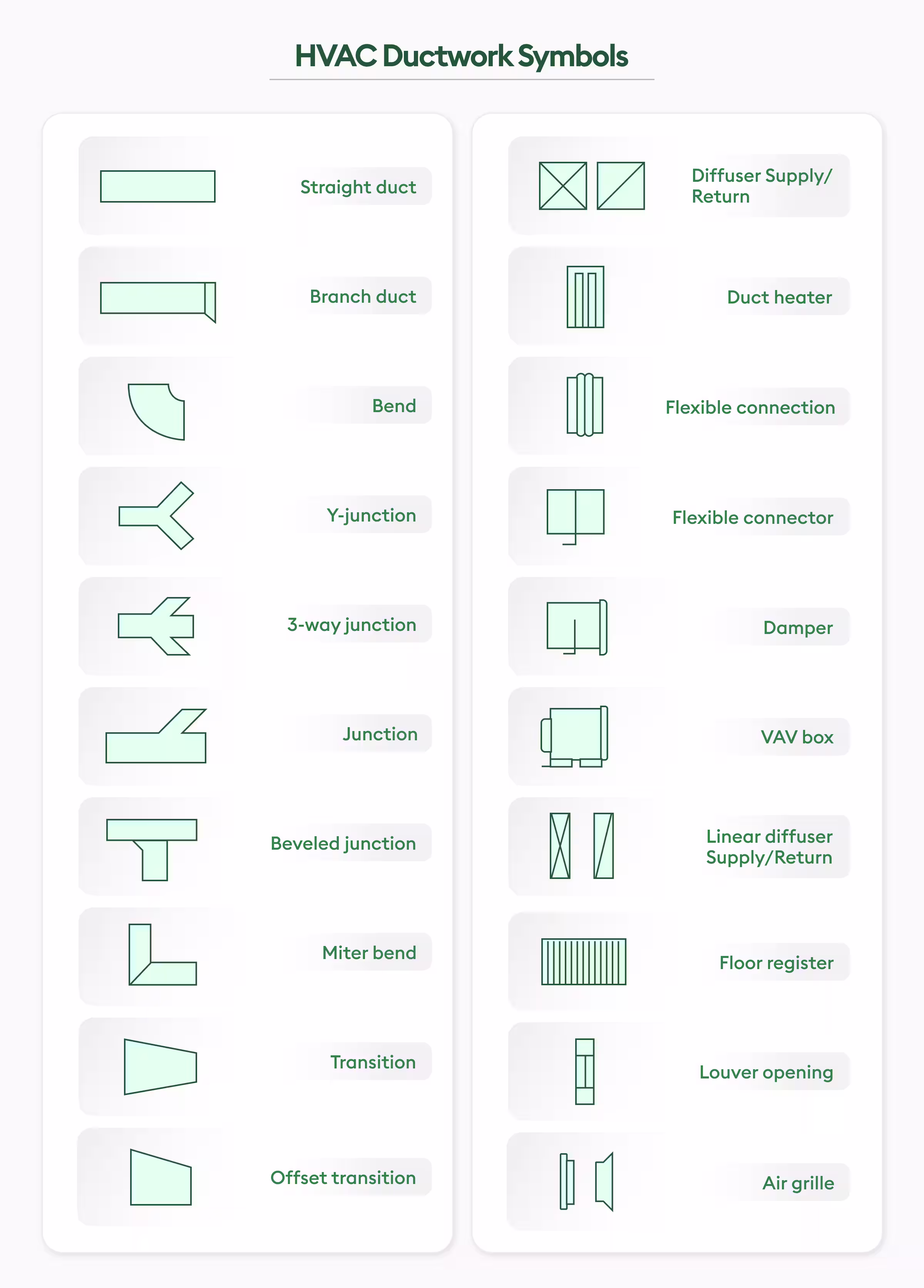

Common ductwork symbols include:
- Straight duct: Represents a continuous section of ductwork.
- Branch duct: Shows a smaller duct branching from a main duct run.
- Bend: Indicates a change in the direction of the duct.
- Y-junction: Shows where one duct divides into two branches.
- 3-way junction: Represents a connection where three duct paths meet.
- Junction: Indicates a connection between duct sections.
- Beveled junction: Shows a branch connection formed at an angled transition.
- Miter bend: A sharp angle in the direction of the duct, usually at 90 degrees.
- Transition: Change in duct shape or size.
- Offset transition: Shows a change in duct size or position while maintaining the connection between sections.
Air Distribution and Duct Accessories
Other symbols identify components that distribute, condition or connect air within the system:
- Diffuser: Delivers or returns air between the duct system and the occupied space.
- Duct heater: Heats the air as it passes through the duct.
- Flexible connection: Connects ductwork to equipment while helping reduce vibration transfer.
- Flexible connector: Provides a flexible connection between duct sections or components.
- VAV box: Regulates the volume of conditioned air delivered to a space.
- Linear diffuser: Provides continuous or elongated air distribution along a ceiling or wall.
- Floor register: Supplies or returns air through a floor-mounted terminal.
- Louver opening: Provides an opening for outdoor air intake or exhaust.
- Air grille: Allows supply, return, or exhaust air to pass between the duct system and space.
How to Read HVAC Drawings Step by Step
Once you know the major HVAC drawing symbols, use a consistent process when reviewing a plan.
Check the title block
Confirm the project, sheet number, drawing date, scale and revision. Make sure you are working from the current drawing set.
Review the legend
Identify the project's symbols, abbreviations, line styles and airflow conventions.
Find the major equipment
Locate AHUs, RTUs, fans, VAV boxes, and other major equipment. Match each tag to its schedule.
Trace the airflow
Start at the equipment and follow the supply duct to the terminals. Then trace return and exhaust paths back toward the relevant equipment or discharge points.
Identify duct sizes and fittings
Record duct dimensions and look for elbows, tees, transitions, offsets, branches, flexible connections and other accessories.
Locate dampers
Mark volume dampers, fire dampers, smoke dampers and automatic control dampers. Check their locations against rated assemblies and details.
Check air terminals
Count diffusers, registers, return grilles and exhaust grilles. Match their tags to the air distribution schedule.
Review sections and details
Plan views do not always show vertical offsets, elevations, connections or installation conditions clearly. Use sections and details to resolve those areas.
Cross-check specifications and schedules
The plan tells you where something is located. The schedule and specifications often tell you what it is and how it must be constructed.
Check other trades
Compare HVAC routing with structural, architectural, electrical, plumbing, and fire protection drawings. Ductwork often competes for the same ceiling and shaft space as other MEP systems.
Why HVAC Symbols Matter for Estimating
Understanding HVAC drawing symbols is not just a design or installation skill. It directly affects the quality of an HVAC takeoff.
A mechanical estimator may need to identify and quantify:
- Ductwork
- Fittings and transitions
- Dampers
- Diffusers
- Grilles and registers
- VAV boxes
- HVAC equipment
- Flexible duct
- Insulation
- Supports and hangers
- Controls and accessories
Missing a symbol can mean missing a quantity.
For example, an estimator who measures the main duct runs but overlooks several volume dampers may have an incomplete material list. Missing fire dampers can create an even larger scope problem because their locations may correspond with rated assemblies and installation requirements.
This is why HVAC takeoffs require more than measuring visible duct lines. The estimator needs to interpret symbols, schedules, notes, details, and specifications together.
A structured mechanical takeoff process can help keep these elements connected throughout the estimate.
How AI Simplifies HVAC Plan Review and Takeoffs
Manual HVAC takeoffs require estimators to repeatedly trace ductwork, count terminals, identify fittings and check multiple sheets. The work becomes more demanding when projects include multiple floors, complex air distribution systems or frequent drawing revisions.
AI-enabled takeoff tools can help automate parts of this process by identifying HVAC components and extracting quantities from digital drawings. Beam AI's HVAC workflow covers ductwork, diffusers, grilles, registers, dampers, fittings, insulation, supports, and related components.
For contractors evaluating HVAC takeoff software, the goal is not to replace the drawing reviewer. The estimator still needs to validate quantities against the legend, specifications, schedules and project requirements.
Instead, HVAC takeoff software for mechanical contractors can reduce repetitive measurement and counting so estimators can spend more time reviewing scope, pricing materials and labor, checking vendor quotes, and resolving project risks.
Common Mistakes When Reading HVAC Symbols
Even experienced estimators can run into problems when a drawing set is dense or inconsistent. Watch for these common mistakes:
- Skipping the legend: A familiar-looking symbol may have a different meaning on the current project.
- Assuming line styles are universal: Solid, dashed, and dotted lines can carry different meanings depending on the drawing convention.
- Ignoring arrows: Airflow direction can help distinguish supply, return and exhaust terminals.
- Counting symbols without checking schedules: A terminal tag may represent a specific size or type that affects the estimate.
- Missing risers: Vertical ductwork can be difficult to quantify from a single floor plan.
- Overlooking dampers: Dampers may be small on the drawing but still represent separate material and installation scope.
- Ignoring sections and details: Plan views do not always show elevation changes, offsets or connections.
- Working from an outdated revision: Addenda and revised drawings can change routing, equipment, and quantities.
Final Takeaway
Learning how to read HVAC drawings becomes much easier when you stop treating every symbol as something you need to memorize. Instead, read the drawing as a connected system.
Start with the legend, identify the airflow type, trace the ductwork and follow the arrows. Then match equipment and terminal tags to schedules. Check dampers, fittings, risers, details and specifications. Finally, compare the mechanical layout with the other trades.
That approach gives estimators a clearer picture of the actual HVAC scope and provides a stronger foundation for accurate ductwork, air distribution, equipment, and mechanical takeoffs.
