How Is Pipe Volume Used in Mechanical Estimating?
Pipe volume is the amount of space inside a pipe that can be occupied by a fluid. It is determined by the pipe’s inner diameter and length. A pipe volume calculation tells you how much space is available inside a pipe for water or another fluid.
For mechanical estimators, this can help with hydronic system calculations, glycol or antifreeze requirements, hydrostatic testing, flushing and system charging. The calculation itself is usually straightforward, but accuracy depends on using the actual inner diameter, the correct pipe length, and consistent units.
What Is the Pipe Volume Formula?
A pipe can be treated as a hollow cylinder. Therefore, its internal volume is calculated using the standard cylinder formula: V = π × r² × L
Where:
- V = internal pipe volume
- π = approximately 3.1416
- r = internal radius of the pipe
- L = pipe length
Because pipe specifications are usually expressed by diameter rather than radius, you first need to divide the inner diameter (ID) by two: r = ID ÷ 2
Additionally, you can also write the pipe volume formula directly using internal diameter: V = π × (ID ÷ 2)² × L
The final result gives you the pipe’s internal volume in cubic units, such as cubic inches, cubic feet or cubic meters. For example, if both diameter and length are measured in feet, the result is in cubic feet. If both are measured in inches, the result is in cubic inches.
The Most Important Rule: Use the Inner Diameter
The most common mistake when calculating pipe volume is using the outside diameter (OD) instead of the inside diameter. Because the fluid occupies the space inside the pipe wall. The wall itself does not contribute to the pipe's fill capacity. Using the OD therefore produces an inflated volume.

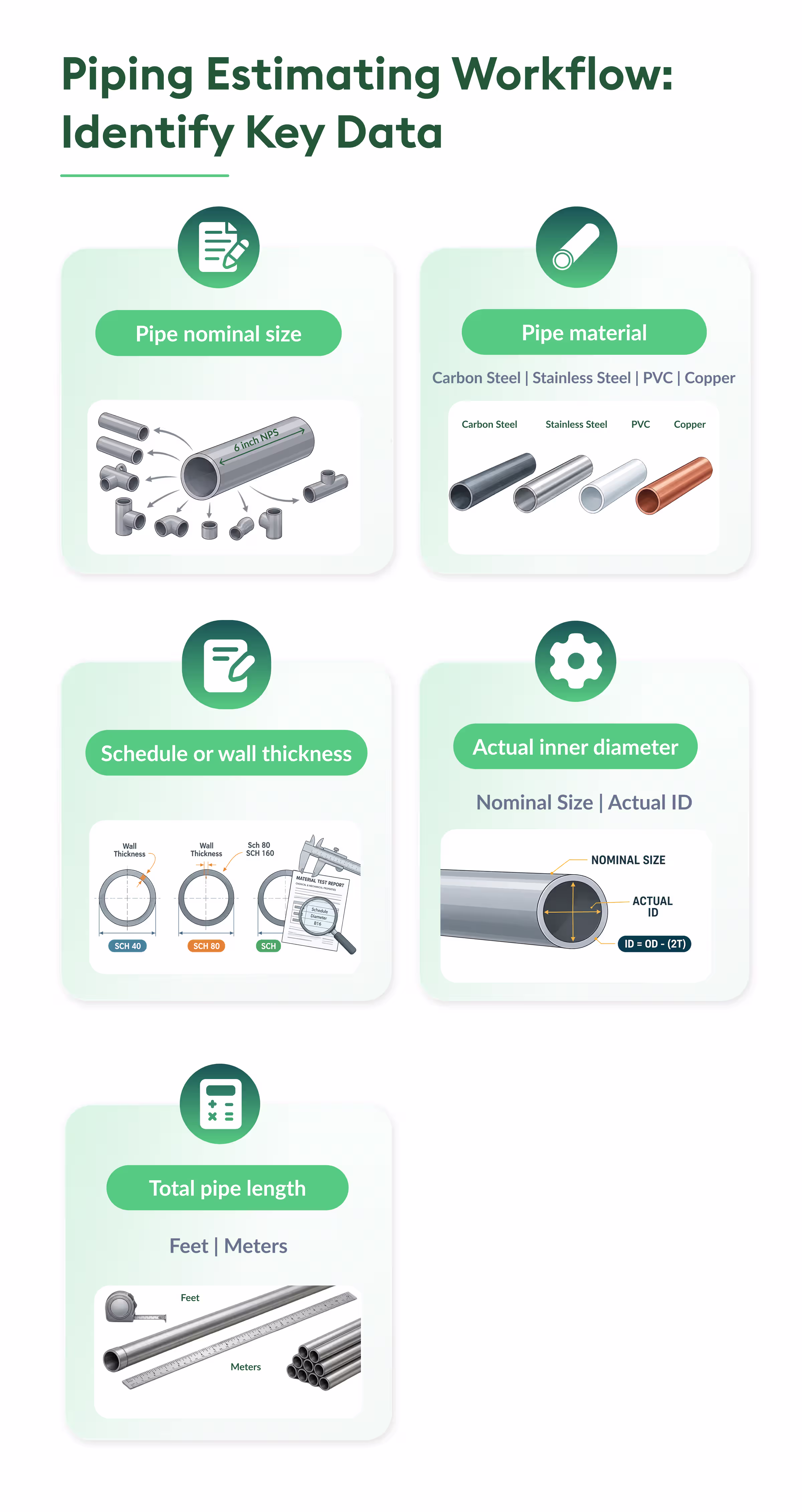

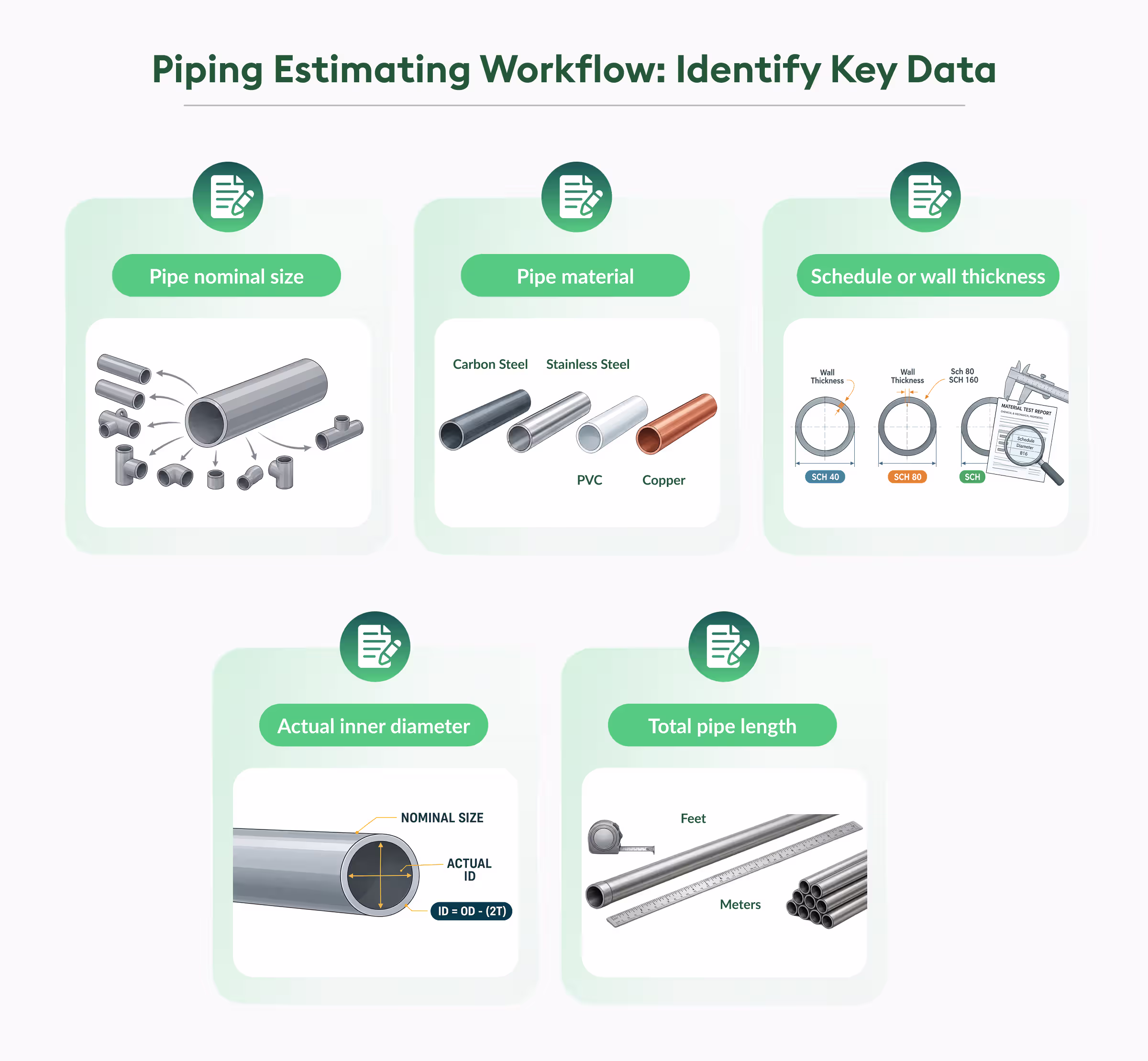

This is crucial in mechanical estimating because nominal pipe size is not necessarily the actual inside diameter. Pipe material, wall thickness and schedule can change the available internal space even when two pipes have the same nominal size.
If you know the outside diameter and wall thickness but not the ID, you can calculate it as: ID = OD − (2 × wall thickness)
Nevertheless, for estimating purposes, the safest approach is to use the actual ID from the applicable pipe schedule, specification, manufacturer data or project documentation.
How Do You Calculate Pipe Volume Step by Step?
Whether you're calculating the pipe fill volume of water in a pipe or determining system capacity for a mechanical estimate, follow these five steps.
Step 1. Get the Inner Diameter of the Pipe
Start with the pipe's actual inner diameter.
Do not automatically use the nominal pipe size shown on a drawing. A pipe labeled as 2 inches, for example, does not necessarily have a 2.000-inch internal bore. The actual ID depends on the pipe type and wall thickness.
Step 2. Divide the Inner Diameter by Two
The pipe volume formula uses radius rather than diameter.
So: Radius = Inner Diameter ÷ 2
For example, if the actual ID is 2 inches: 2 ÷ 2 = 1 inch radius
Remember that your radius and length must eventually be expressed in compatible units.
Step 3. Square the Radius
Next, multiply the radius by itself: r² = r × r
For a 1-inch radius: 1 × 1 = 1 square inch
The inner diameter directly affects how much fluid the pipe can hold so even a small difference can change the final volume.
Step 4. Multiply by π and Pipe Length
Now apply the formula: V = π × r² × L
Make sure the radius and length use the same unit system.
If you're using inches for the radius, convert the pipe length to inches before calculating cubic inches. Alternatively, convert the diameter to feet if the pipe length is already measured in feet.
Mixing inches and feet in the same calculation without conversion is one of the easiest ways to produce an incorrect result.
Step 5. Convert the Result to the Required Unit
Once you've calculated the cubic volume, convert it into the unit required for your mechanical estimate.
Common conversions include:
For example, 1 U.S. gallon equals 231 cubic inches, while one cubic foot is approximately 7.48 U.S. gallons.
How Do You Calculate the Volume of Water in a Pipe?
The same pipe capacity calculation determines the volume of water a completely filled pipe can hold.
Consider a 6-foot pipe with a 2-inch inner diameter.
Step 1: First, convert the diameter to feet:
2 ÷ 12 = 0.1667 ft
Step 2: Calculate the radius:
0.1667 ÷ 2 = 0.0833 ft
Step 3: Apply the formula:
V = 3.1416 × (0.0833)² × 6
V ≈ 0.1309 cubic feet
Now convert cubic feet to U.S. gallons: 0.1309 × 7.48 ≈ 0.98 gallons
So, a 6-foot pipe with a true 2-inch ID holds approximately 0.13 cubic feet, or 0.98 U.S. gallons, when completely filled.
This type of calculation is useful when estimating the amount of water, glycol, antifreeze, or another fluid required to fill a mechanical piping system.
How Do You Calculate Pipe Volume in Cubic Inches and Gallons?
For smaller pipe sections, working entirely in cubic inches to gallons pipe can be more convenient.
Suppose a pipe has:
- Inner diameter = 2 inches
- Length = 72 inches
The radius is: 2 ÷ 2 = 1 inch
Then: V = 3.1416 × 1² × 72
V ≈ 226.2 cubic inches
Convert that volume to gallons: 226.2 ÷ 231 ≈ 0.98 gallons
This is the same result as the previous example. The important point is not which unit system you use, it is that you do not mix units during the calculation.
For a larger mechanical estimate, you can repeat the calculation for every pipe size and length, then add the results: Total system volume = Volume₁ + Volume₂ + Volume₃ + …
This is more accurate than applying one average volume to the total pipe length when a project includes multiple pipe diameters.
Why Does Pipe Volume Matter in Mechanical Estimates?
Pipe volume is not usually the same thing as the quantity you use to price the pipe itself. A pipe takeoff typically measures linear footage, while pipe volume measures the internal space available for fluid.
The two calculations serve different estimating purposes.
For example, mechanical contractors may need pipe volume to estimate:
- Water required to fill a hydronic loop
- Glycol or antifreeze requirements
- Flushing and cleaning requirements
- Hydrostatic test water
- System charging requirements
- Expansion tank considerations
- Fluid weight and loading
- Equipment and system capacity
For fluid-filled systems, the volume can also be used to estimate fluid mass: Liquid mass = Volume × Liquid density. For more accurate measurement and quantifying mechanical components, mechanical contractors are now adopting AI takeoff and estimating software.
For water, a commonly used density around room-temperature conditions is approximately 997 kg/m³. If you're estimating glycol, refrigerant, antifreeze or another fluid, use the appropriate density rather than assuming water.
This distinction is important as pipe volume tells you how much fluid the pipe can contain; it does not tell you how quickly fluid flows through the pipe. Flow rate is a separate calculation based on factors such as velocity and time.
What Factors Can Change Pipe Volume?
The formula stays the same, but the inputs can vary significantly between projects.
Pipe Material and Schedule

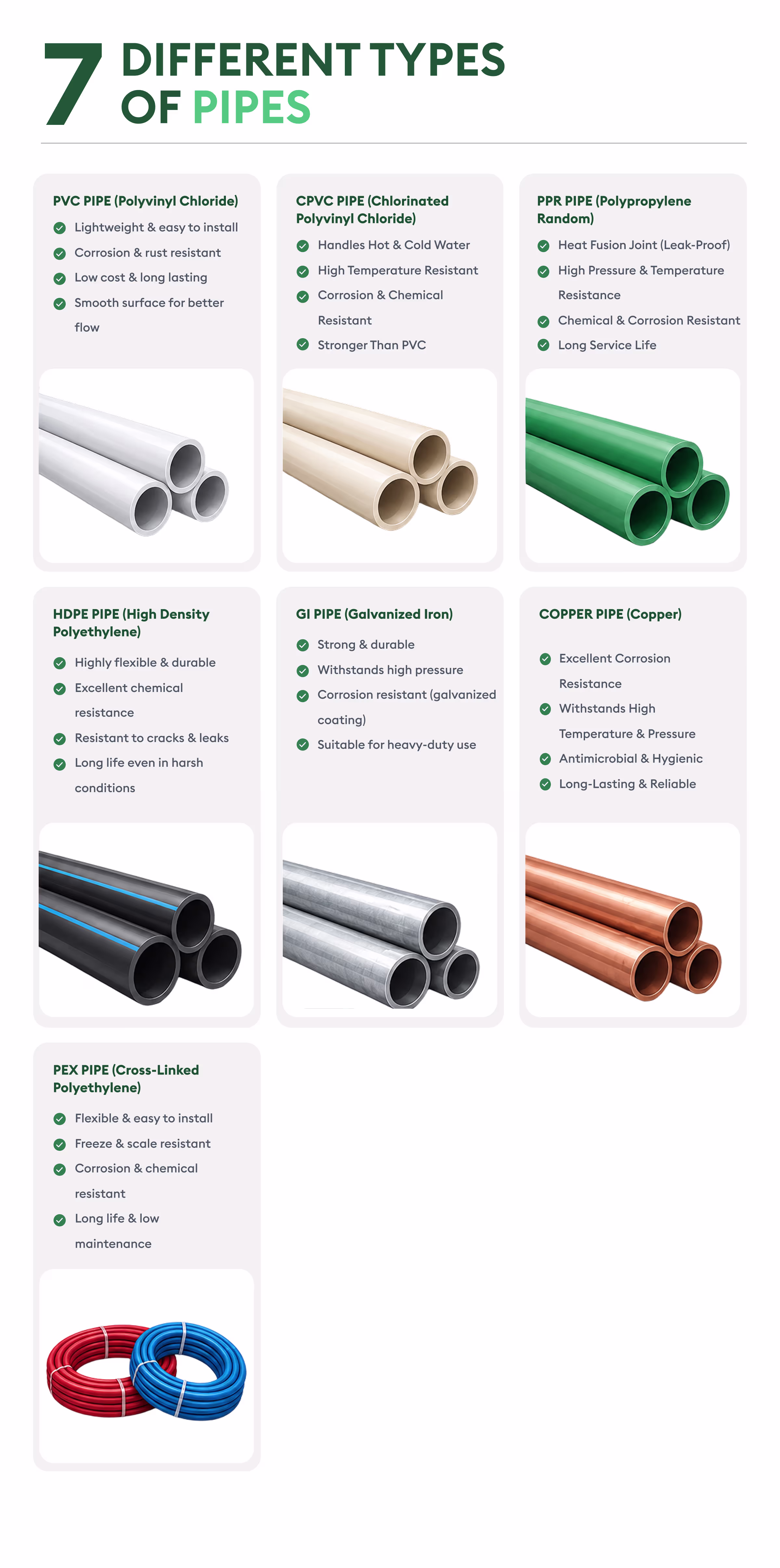

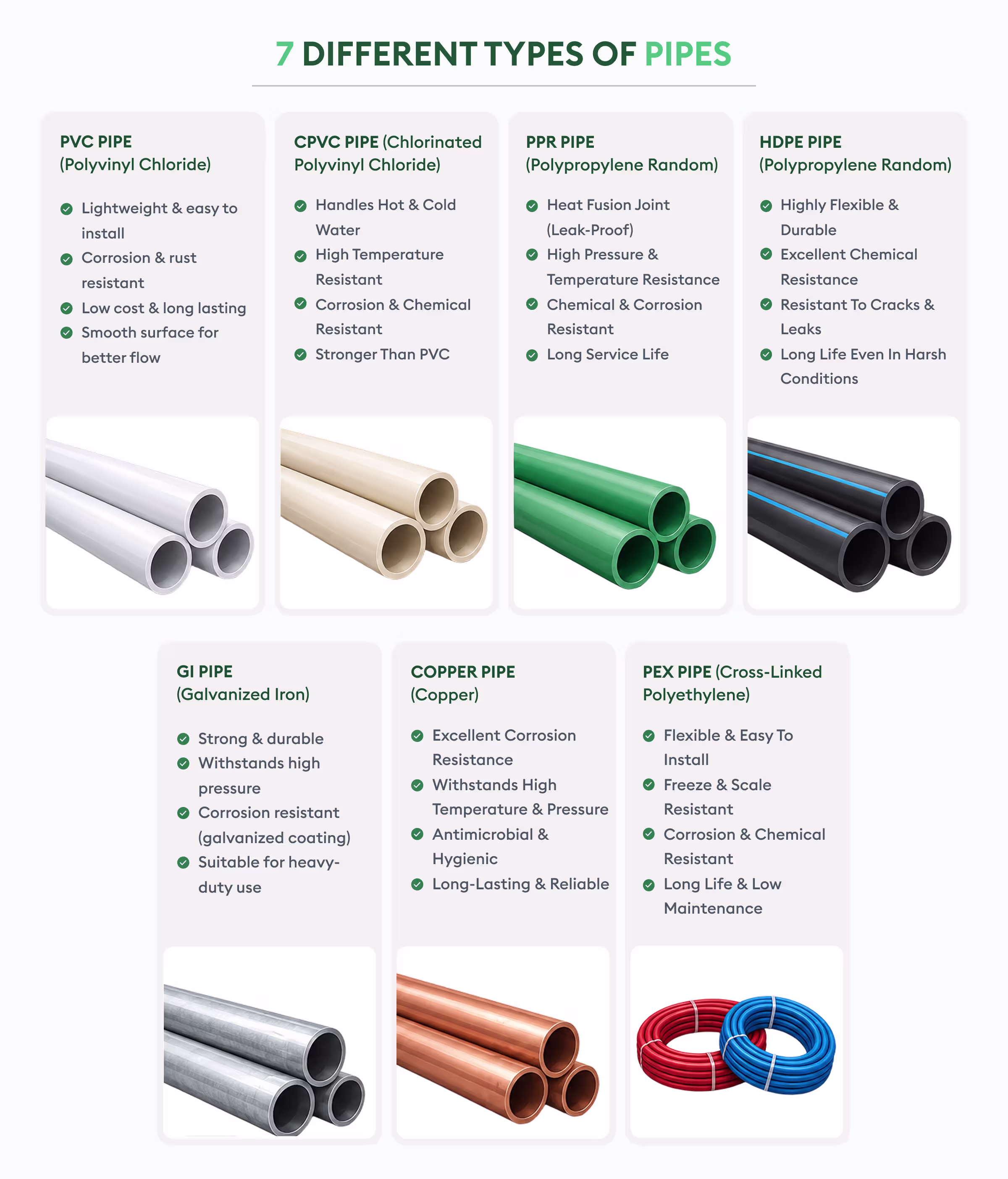

Copper, steel, PVC, PEX, and other pipe types can have different wall thicknesses. As a result, two pipes with the same nominal size can have different internal diameters and therefore different capacities.
Pipe Length
Volume increases directly with length. Double the length of the same pipe and you double its internal volume.
Inner Diameter
Diameter has an even stronger effect because it is squared in the formula.
This is why using nominal diameter instead of actual ID can create a meaningful error, particularly when working with materials that have substantially different wall dimensions.
Partial Fill
The standard formula assumes the pipe is completely filled. If a system is only partially filled, the actual fluid volume will be lower.
For mechanical estimates involving closed hydronic or pressurized systems, always confirm the project requirements and whether the calculation is intended to represent full system capacity or actual operating conditions.
Common Pipe Volume Calculation Mistakes to Avoid
A few errors show up repeatedly when estimators perform pipe capacity calculations manually.
- Using nominal size instead of actual ID: Nominal pipe size is a designation, not necessarily the true bore.
- Using outside diameter: OD includes the pipe wall and will overestimate fluid capacity.
- Mixing units: An inner diameter in inches and length in feet cannot be inserted into the formula without conversion.
- Forgetting to square the radius: The formula requires r², not simply r.
- Combining different pipe sizes: A 2-inch pipe and a 4-inch pipe do not have proportional capacities based simply on their diameters. Calculate each size separately.
- Confusing volume with flow rate: Volume measures how much fluid the pipe can hold. Flow rate measures how much fluid moves through the pipe over time.
- Ignoring project-specific fluid requirements: Water density cannot automatically be applied to glycol, antifreeze, or other fluids.
Can a Pipe Volume Calculator Speed Up Mechanical Estimates?
For one short pipe run, manual calculation takes only a few seconds. The challenge comes when a mechanical project contains hundreds of pipe segments, multiple diameters, different schedules, and several systems.
A pipe volume calculator can automate the arithmetic once you provide the correct ID and length. For estimating teams, however, the larger challenge is often obtaining those inputs accurately from drawings.
A mechanical takeoff may require you to identify pipe sizes, trace linear runs, distinguish supply and return systems, count fittings and reconcile information across plans and specifications. Modern AI takeoff workflows can automate much of the quantity extraction from PDF drawings, reducing repetitive measurement and counting work.
For broader mechanical estimating, see our guides on How to Do Plumbing Takeoffs.
Quick Reference for Pipe Volume Calculations
Keep these numbers handy when performing a pipe capacity calculation:
The key rule is simple: start with the actual inner diameter pipe volume, keep your units consistent and then convert the final cubic volume into the unit your estimate requires.
Accurate pipe volume calculations help you plan fluid requirements, avoid material overages and build more reliable mechanical estimates.
